Slide Gate Operators

As an Authorized LiftMaster Dealer, we install the world’s number brand of slide gate operators. There are many questions that need to be answered before a slide gate operator can be quoted to install. Sometimes a simple slide gate repair can make the gate operator last longer.

Questions for Slide Gate Operators

1. How big is my driveway and yard?
2. What type of fence is the slide gate operator going to open? Is it wood, board on board or wrought iron?
3. How heavy is the gate?
4. Do you have a concrete pad for the operator to sit on?
5. Do the rollers on the actual gate need to be replaced?

Those are just a few of the questions to ask a certified gate technician. Listed below are some LiftMaster gate operators with all the specs.

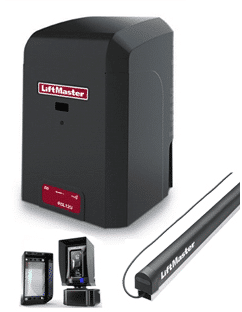

RSL12UL — 12VDC Residential/Light Commercial
Setting the New Standard with Best-in-Class Features

Ideal for Heavy Residential gates. Powerful DC motor provides smooth quiet operation.

• P3 Motor – designed to perform in the most demanding environments
• Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability
• Soft Start/Stop Operation extends operator and hardware life in high-cycle and heavy-gate applications.
• Lockable Manual Disconnect when unlocked allows gate to be operated manually.
• Wireless Dual-Gate Communication eliminates expensive conduit costs and unsightly driveway scars.
• Fire Department Compliance allows gate to auto open or push-to-open upon loss of AC power or battery depletion.
• Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
• Quick Close/Anti-Tailgate quickly secures property, preventing unauthorized access – (this option does require an optional expansion board).

2016 UL 325 Gate Guidelines

Liftmaster is committed to helping the industry design, install and service safe gate applications that are tested and certified to meet the most stringent industry safety standards. Gate operators will now monitor for fault conditions of external entrapment. “Protection”

What You Need to Know:

• Two monitored safety entrapment protection devices must be installed at each entrapment point, including the inherent reversing system built in to each LiftMaster Gate Operator. LiftMaster Monitored Photo Eyes and/or Edge Sensors may be used with this operator.
• Gate operators will now monitor for fault conditions of external entrapment protection devices.
• Includes 6 monitored safety inputs to cover all entrapment points.

Warranty – Three (3) years residential

Want more specs? Go here

Safety Accessories

Monitored Retro-Reflective Photo Eye

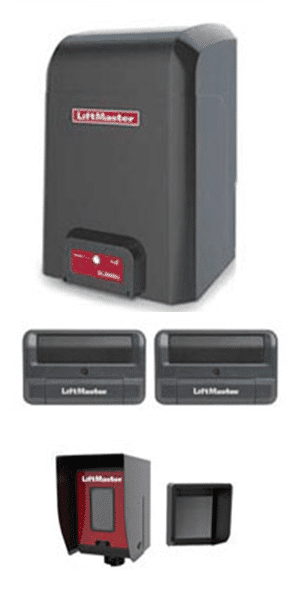

SL3000UL – 1/2 and 1 HP AC High Traffic
Commercial Slide Gate Operators

Ideal for – Heavy Traffic Applications such as high-volume commercial workplaces and communities.

The 1/2 HP rated for gates 50ft and 1,000 lbs. The 1 HP rated for gates 50ft and 2,000 lbs.

• P3 Motor – designed to perform in the most demanding environments

• Legacy Elite Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability
• Wireless Dual-Gate Communication eliminates expensive conduit costs and unsightly driveway scars.
• Manual Disconnect when unlocked allows gate to be operated manually. Connect to optional Fire Department box to meet local fire code
•  Inherent Reversing Sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening.
• Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
• Quick Close/Anti-Tailgate quickly secures property, preventing unauthorized access
• Limit Switch Design provides precision limit accuracy and reliability.

2016 UL 325 Gate Guidelines

Liftmaster is committed to helping the industry design, install and service safe gate applications that are tested and certified to meet the most stringent industry safety standards.

What You Need to Know:

• Two monitored safety entrapment protection devices must be installed at each entrapment point, including the inherent reversing system built in to each LiftMaster Gate Operator. Only LiftMaster Monitored Photo Eyes and/or Edge Sensors may be used with this operator.
• Gate operators will now monitor for fault conditions of external entrapment protection devices.

Warranty – Five (5) years commercial or Seven (7) years residential

Want more specs? Go here
